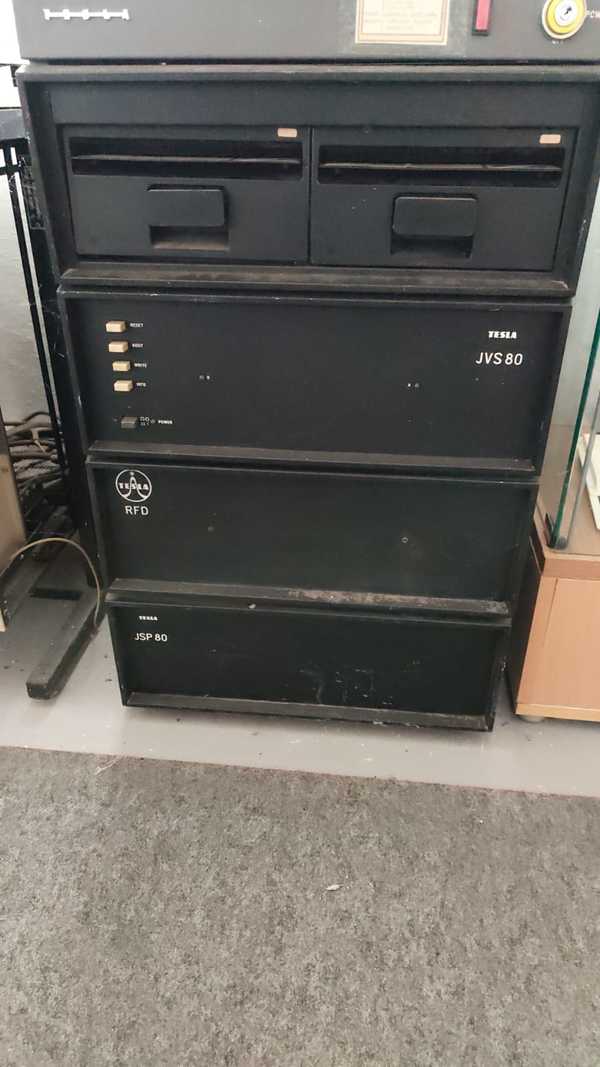

SAPI-80
Designed by Ing. Eduard Smutný, TESLA Strašnice.Computer was manufactured from 1983 by Tesla Strašnice. The computer was inspired by or was successor to Intel MDS 80. Hardware is based on MHB8080A, UB880D.Operating systems running on the computer: ISIS-II,CP/M,COS-80.
The SAPI80 system started with the 8080 processor, then they made an adapter (an auxiliary board that was inserted into the socket after the 8080 and 8228 and had the U880D on it, later they made a new board again with the 8080 and then a board with the Z80
Clone according to the possibilities of the component base, but SW fully compatible. even the description of the SAPI-80/01 processor card is 80% a literal translation of the original Intel manual, MULTIBUS bus, the first boards had a bus controller from several IOs, later boards used a copy of the intel i8218 controller from the USSR.
SW is then on OS ISIS II, CPM, PASCAL80, BASIC80, PL/M 80, FORTRAN 80, MBASIC, MFORTRAN
File JVS 80-B - Development System Units
The JVS 80-B development system units include:
- Single board microcomputer JPR 80/01-A
- JPR 80/06-D semiconductor RAM board (64 KB).
- Flexible disk connection board JPR 80/11-B
Floppy disk subsystem, composed of:
- RFD floppy disk controller units with FDK-2 floppy disk formatting option
- JFD-2 floppy disk drives with two drives, inf. capacity 2×256 KB
Cabinet SKR 80
For placing up to four panel units from the SAPI 80 file.
Eight connection cables:
1 piece of cable 4 XV 988 098 for connecting the JPR 80/01-A board with the AND 16 A display.
1 piece of cable 4 XV 988 114 for connecting the JPR 80/11 board to the RFD flexible disk controller.
2 pcs of cable 4 XV 988 086 with a length of 1.5 m for connecting peripherals.
2 pcs of cable 4 XV 988 093 with a length of 2 m for connecting peripherals.
2 pcs of cable 4 XV 988 094 with a length of 4 m for connecting peripherals.
The set can be supplemented with peripherals that connect directly to the JPR 80/01 microcomputer board:
- Tesla AND 16 or Tesla AND 80 terminal
- Printer DZM 180, Consul 2111 or Consul 2113
- FS 1503 punched tape sensor
- Punch tape punch DT 105 S or Robotron 1215-1113
- Microcomputer: JPR 80/01
- RAM: 64 KB
- Disk controller: RFD
- Disk drive: JFD-2
- Other boards are connected via the MULTIBAS (MULTIBUS) bus.
File elements:
- JPR 80
- JPR 80/01
- JPR 80/20 A/B
- JPR 80/20Z
- JPR 80/02 - 32kB EPROM + parallel I/O
- JPR 80/03 - ferrite RAM 8KiB
- JPR 80/08 solid state RAM 64KB
- JPR 80/04 - serial I/O
- JPR 80/05 - program. timers, counters, JSP 80 connections
- JVS 80
- JSP 80
- SKR 8 / SKR 80 -- cabinet
- JFD 80 -- Flexible discs
- IZOT SM 5400 -- Cassette disc
- IZOT SM 5300 -- Mag. tape
- JKP 80 -- 2x cassette tape memory KPP 800
- RFD & JFD2 (2x MOMFLEX MF 6400) -- Flexible disc system
- DT 105 S -- Tape punch
- FS 1503 -- Tape sensor
- DMS 1 -- Device for remote measurement and signaling
- ZNZ 80 -- Backup power supply
- PDP -- Diagnostic Assistant. panel
- Tesla AND-16 / Tesla AND-80 terminals -- Alphanumeric/Semigraphics
- PRM 80 -- PROM/EPROM Programmer
- MZP 80 -- Device for erasing EPROM
- PDU -- Teletype Level Converter
- TPR -- GDN Modem
- SMK -- sensor mg. cards
- OMD -- Optical Modem
VSM 80
A microcomputer development system based on SAPI 80 designed for creating programs, verifying user systems with SAPI 1 and SAPI 80 computers.
To work with a small universal microcomputer system with flexible disks, it is possible to order the operating system ISYS II with flexible disks 4 XV 141 701, which includes:
Operating system and translators of higher programming languages.
Monitor for operating basic peripherals (stored in EPROM memory on the JPR 80/01 microcomputer board).
Manuals are part of the software:
- ISYS II operating system: 4 XV 120 301
- Monitor VSM 80-B: 4 XV 120 302
- Assembler 80: 4 XV 120 303
- Basic 80: 4 XV 120 304
- PL/M 80: 4 XV 120 305
- Fortran 80: 4 XV 120 306
- Pascal 80: 4 XV 120 307
- SYST.001 - Operating system: 4 XV 140 701/0
- SYST.002 - Fortran 80: 4 XV 140 702/0
- SYST.003 - PL/M 80: 4 XV 140 703/0
- SYST.004 - Pascal 80: 4 XV 140 704/0
- SYST.005 - Basic 80: 4 XV 140 705/0
- SYST.006 - Monitor file: 4 XV 240 706/0
- 4 blank discs: 4 XV 004
- Normal office environment without aggressive gases and vapors.
- Ambient temperature: +5 °C to +40 °C
- Supply voltage: 220 V ±10%, -15%
| RVD 1 switchboard | "4XV 120 101" |
| JPR 80/01 Microcomputer board | "4XV 120 102" |
| JPR 80/03 Ferrite memory board | "4XV 120 103" |
| JPR 80/07 digital input and output board | "4XV 120 104" |
| JPR 80/09 KPP connection board (cassette tape memory) | "4XV 120 105" |
| AND 16 alphanumeric display | "4XV 120 106" |
| VSM 80 Microprocessor Development System Part I | "4XV 120 107" |
| VSM 80 microprocessor development system II. part | "4XV 120 107" |
| JPR 80/06 Semiconductor memory board | "4XV 120 108" |
| JPR 80/12 Development board | "4XV 120 109" |
| JPR 80/02 memory EPROM+ Pport | "4XV 120 110" |
| JPR 80/04 Serial input board | "4XV 120 111" |
| Jpr 80/05 Timer and Basic Logic Board | "4XV 120 112" |
| JPR 80/08 Board analog inputs and outputs | "4XV 120 113" |
| JPR 80/11 Connection of flexible discs | "4XV 120 114" |
| JSP 80/01,02 basic logic board for contact with the environment | "4XV 120 115" |
| JSP 80/03,04,05,06 input and output boards | "4XV 120 116" |
| Jsp 80/07,08 Board of analog inputs and outputs | "4XV 120 117" |
| SKR 80 cabinet | "4XV 120 118" |
| PRM-80 EPROM programmer | "4XV 120 119" |
| MZP-80 EPROM eraser | "4XV 120 121" |
| VSM 80-B | "4XV 120 123" |
| JPR 80/20 microcomputer board | "4XV 120 125" |
| JPR 80/20-Z Microcomputer board ( Z80) | "4XV 120 126" |
| JPR 80/17 Serial input and output board | "4XV 120 127" |
| JPR 80/13 Connection board IMS-2 | "4XV 120 128" |
| JPR 80/22A,B telegram receiver and transmitter | "4XV 120 129" |
| ZNZ backup power supply | "4XV 120 131" |
| OMD optical modem | "4XV 120 133" |
| VSM-80 C manual | "4XV 120 134" |
| Solid state memory PPM 1.2 | 4XV 120 151 |
| TPR data transfer terminal | "4XV 120 152" |
| JPR 80/23 diagnostics board | "4XV 120 154" |
| JPR 80/14 timer and counter inputs | "4XV 120 155" |
| JPR 80/19A,B bus extension | "4XV 120 156" |
| JPR 80/21 Semiconductor memory | "4XV 120 158" |
| AND 80 alphanumeric display | "4XV 120 159" |
| JFD80 unit FD | "4XV 120 160" |
| JPR-80/18 controller FD | "4XV 120 161" |
| Operating system ISYS-II | "4XV 120 301" |
| Monitor | "4XV 120 302" |
| Assembler | "4XV 120 303" |
| BASIC 80 | "4XV 120 304" |
| PL/M 80 | "4XV 120 305" |
| FORTRAN 80 | "4XV 120 306" |
| Pascal 80 | "4XV 120 307" |
| Library of support programs part I. | "4XV 120 308" |
| Library of support programs part II. | "4XV 120 308" |
| Extension of OS ISYS II program resources | "4XV 120 309" |
| IMS-BASIC Operator's Manual and Language Description | "4XV 120 310" |
| CPM System Services | "4XV 120 311" |
| CPM Services | "4XV 120 312" |
| MBASIC | "4XV 120 314" |
| MPASCAL | "4XV 120 316" |
| MFORTRAN | "4XV 120 316*" |
| Monitor ( VSM-C ) | "4XV 120 320" |
| CPM Services | "4XV 120 326" |
Inaccuracies/doubts related to the topic
The model was an Israeli computer - a clone of the Intel MDS 80, not the Intel MDS 80 itself. The exact name of the computer is unknown.
