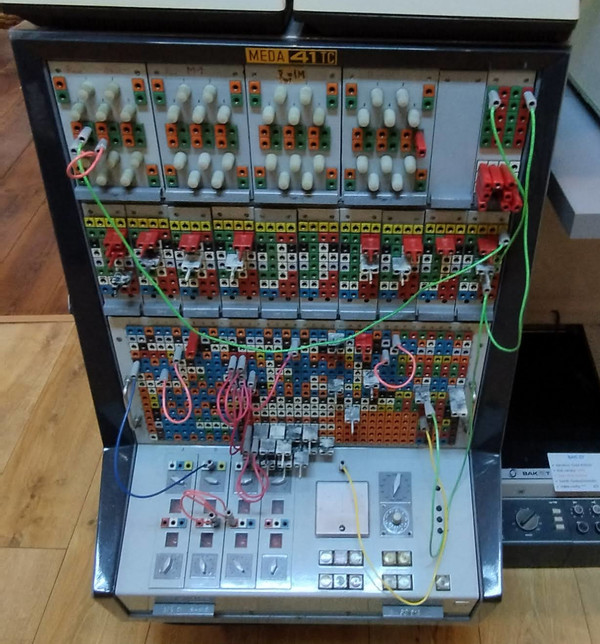

MEDA 41 T

Also called MEDA-T model 69.Designed by VÚMS.It was manufactured from 1969 by Aritma. The computer was inspired by or was successor to MEDA-T.

Parts of this topic may be machine translated.

Variants Meda 41 t

Applicable year about 1968

• Meda 21 Ts
• Meda 41 Ta
• Meda 41 TB
• Meda 41 TC - iteration computer, works separately or as a supplement - a logical simulator for media 40 t (then a hybrid system), the year 1968, someone presents 1965
• Meda 41 TD - Supplementary computer

Meda 41 TC also as part of Meda Hybrid-1 or Meda-Log.

Assembly meda 81 t

Meda 81 t (assembly from medal 41 Ta + meda 42 TB)

Hybrid systems

The development of Czechoslovak hybrid computer technology is very closely linked to the introduction of mass production of a small hybrid analog computer Meda 41 TC, which occurred in 1969/70. Its great advantage is the conceptual adaptation for operation in a hybrid computing system.

For connecting the computer 41 TC with digital computers has been developed and Spoza 2 connecting devices 2 were introduced into production. Several hybrid computational systems were implemented in 1972 to 1973, such as:

• Meda 41 TC + Rip 100
• HKA 1041 (Meda 41 TC + TPAI 1001)
• Game 4241 (assembly from medal 41 TC + SPOZA 2 + ROBOTRON KRS 4200)
• HTA 1641 (Meda 41 TC + SPOZA 2 + RPP-16 S)
• Meda 41 TC + Melog 100 (NSR)

Of these, the greatest expansion was achieved by the hybrid computing system of play 4241, which was created in the framework of international scientific and technical cooperation between Czechoslovakia and the GDR.

Meda-T Model 69

• Non -linear differential analyzers. [Part] and, Meda 21 TS and Meda 41 Ta. [Part] B, Meda 41 TB. [Prague]: Arithma, 1969. 19 pp. AAT-ARITMA Analog technology. Computers of the Meda-T model 69; sv. 1.
• Power and power module units for computers Meda 21 TS and Meda 41 TA. [Prague]: Arithma, 1969. 30 pp. AAT-ARITMA Analog technology. Computers of the Meda-T model 69; sv. 2.
• Power and measuring modular units Additional cabinet Meda 41 TB. [Prague]: Arithma, 1969. 40 pp. AAT-ARITMA Analog technology. Computers of the Meda-T model 69; sv. 3.
• Panel counting networks PPS 12 s, type ON 280 0078. [Prague]: Arithma, 1969. 25 p. Computers of the Meda-T model 69; [Sv.] 4.
• Control panel OPA type ON 280 40. [Prague]: Arithma, 1969. 18 l. Computers of the Meda-T model 69; sv. 5.
• OPB control panel type ON 280 42. [Prague]: Arithma, 1969. 12 p. Computers of the Meda-T model 69; sv. 6.
• Maintenance and prophylactic control of analog computers Meda-T Model 69. [Prague]: Arithma, 1969. 27 p. Computers of the Meda-T model 69; Sv. 7.
• Polarized relay on 280 34. [Prague]: Arithma, 1969. 7 p. Computers of the Meda-T model 69; Sv. 8.
• Basic calculating modular units and connecting accessories of computers Meda T Model 69. [Prague]: Arithma, 1969. 34 p. Computers of the Meda-T model 69; Sv. 9.
• Special calculating computer units Meda T Model 69. [Prague]: Arithma, 1969. 18 p. Computers of the Meda-T model 69; Sv. 10.
• Additional measuring units of computers Meda T Model 69. [Prague]: Arithma, 1969. 35 p. Computers of the Meda-T model 69; sv. 11.
• Auxiliary modular units of computers Meda T Model 69. [Prague]: Arithma, 1969. 11 p. Computers of the Meda-T model 69; sv. 12.

Computers derived from MEDA 41 T

The following computers were inspired by or derived from MEDA 41 T:

• MEDA 42 T (Aritma)

References

• SVOBODA, Antonín. Kancelářské stroje, stroje na zpracování informací a pomocná zařízení ze zemí RVHP: Určeno [také] stud. na školách ekon. směru všech stupňů. Praha: SNTL, 1977, s. 312. Dostupné také z: https://ndk.cz/uuid/uuid:e2656430-f6a1-11e3-aa05-005056825209
